Poseidon 4002

Poseidon 4002 is a 19" 1U rack mount system for datacenter temperature and environment monitoring. The Poseidon solution monitors racks and computer rooms (temperature, humidity, electricity supply, access to the room, detectors). Alerting works by e-mail, SNMP traps, SMS, output relays.

Poseidon 4002 is a complete system for environment monitoring in a rack or in a datacenter. The 4002 model can be mounted as a 1U device, or outside of the 42U space.

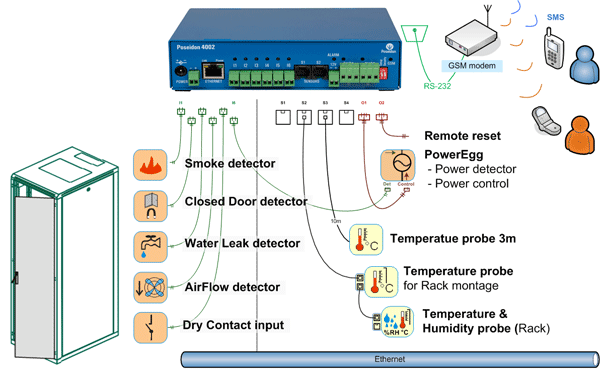

The Poseidon solution monitors a 19" rack or an entire server room. 18 sensors are supported (temperature, humidity, smoke, flood, electricity supply status or failure, entry to the room, digital inputs).
The Poseidon 4002 monitoring system fits into a 19" rack and is SNMP compatible. Two monitoring applications (PD Trigger and HWg-PDMS) are included free of charge.
Alerting to critical situations is performed by e-mail, SNMP Traps, SMS (GSM modem required) and output relays. The relays can be used, for example, to switch on a backup air-conditioning unit or to restart a server.

Online Demo .....



Technical Specs .....



Operating Manual.....



Features

Ethernet: RJ45 (10BASE-T)

WEB: Embedded WEB server / GUI
Sensors: 4xRJ11 1-Wire UNI (max 12 sensors Temperature, humidity, voltage, AC current, air flow, flood)
Inputs: 6 dry contact inputs (for detectorsSmoke, power, water leak, door contact, air flow, entry to the room)
Outputs: 2 output relays (24 VDC Air conditioning, server power supply, horn / light tower)
M2M protocols: SNMP, XML and Modbus/TCP
Physical features: 10" or 19" rack mount, dimensions: 184 x 44 x 125 [mm] (1U)
 Response to thresholds: SNMP trap, E-mail, SMS
GSM modem: A GSM modem for sending text messages (SMS) can be connected to RS-232
SMS Gateway: Device can send SMS by external "SMS GW" or be "SMS GW" for other devices.
SMS + Ring when alarm: Supported
Built-in functions: Output controlled with an input or sensor value ("Thermostat" mode).



Supported Software

HWg-PD Trigger: Event processing

CapTemp:  Visualization, Process monitoring and control

HWg-PDMS: Monitoring software with MS Excel reporting

Third Party SNMP Softwareı: HP OpenView, IBM Tivoli, Nagios, Zabbix, Cacti, Monitor one, The Dude, Paessler IPCheck, Ipswitch WhatsUp, Axence nVision, CBR little: eye, LoriotPro, GFi NSM, SNMPc 7, CA NSM, ActiveXperts NM, Intellipool NM, MSC Operations Manager 2007

Usage Examples

Data centers
  •     Rack mount environment monitoring
  •     Remote rack monitoring
  •     Computer room temperature
  •     SNMP environment monitoring system

Air-conditioning monitoring

  •     A/C operation and water leak detection
  •     Computer room temperature
  •     Humidity in the datacenter (inside racks, in the A/C outlet, under the raised floor)
  •     Rack mount temperature monitoring system

UPS / back-up generator monitoring

  • Fuel level, diesel generator status, remote start over IP, monitoring of temperature and service contacts

Security systems

  •     IP surveillance systems (external sensors)
  •     Equipment status, access control systems



Sensors

1-Wire UNI Sensors

Total bus length max 4x60 m
Each sensor has its own SafeRange. When the range is exceeded (alarm), e-mail or SNMP trap is invoked.
Temperature - Temp-1Wire
Humidity - Humid-1Wire
Air flow sensor
Voltage sensor (0..10V)
AC current 0..30A
Hub: T-Box

Dry Contact

Water flood detector
Gas leak detector
Smoke detector
Motion detector
Magnetic door detector

Digital Outputs

Electricity supply control: PowerEgg to detect and control 110/230V
