Poseidon2 4002 is a system for remote monitoring of rack environmental conditions (occupies 1U). Measures temperature, checks if the lights are on or the doors are open in the server room, and more. Relay outputs (4x digital output) can activate fans or an additional light. Poseidon is SNMP compatible, includes a data logger, e-mail and SMS alerts. It can be connected to the SensDesk online portal or cloud sensor systems.
Poseidon2 4002 is a remote environment monitoring system for datacenters and server rooms.
It alerts to open door, high temperature and humidity, or other sensor readings. Typical applications include monitoring one or more racks, or the entire server room. Poseidon2 4002 can be mounted on the wall, on a DIN rail, or as a 1U device in a 19” rack.
Use your Poseidon to monitor your computer room temperature via SNMP (Nagios, Cacti, OpenView, ..) or with a smartphone app.
Poseidon2 4002 can be used as a standalone environment monitoring device with email alerts or as a part of a complex monitoring system (SNMP or SensDesk online portal).
Sensors and detectors
Up to 16 external sensors, 12 detectors with a dry contact output, 4 relay outputs and a GSM modem can be connected.
We supply temperature and humidity sensors (indoor/outdoor), light intensity sensors, DC/AC current and voltage converters.
Digital Inputs can be connected to smoke detectors, power failure detectors, water flood detection, and more. Relay outputs can be controlled over the Web, or according to the value of a connected sensor, for example to control air conditioning or ventilation.
E-mail and SMS alerts
When a value is out of a specified range, Poseidon2 sends an e-mail, a SNMP Trap, or a text message (SMS). Text messages (SMS) can be sent via an external GSM modem, or through a central “HWg-SMS-GW” text message gateway. Just a single SIM card can serve all your devices.
|
|
|
Features
Ethernet: RJ45 (10BASE-T)
WEB: Built-in web server
Sensors: 6xRJ11 – max. 16 external sensors (1-Wire / 1-Wire UNI)
Digital inputs (DI): 12x DI for dry contacts (state detectors)
Digital outputs (DO): 4x DO relay output (low-voltage NO/NC relay contact)
Operating temperatureı: -35 to +85°C (-31 to +185°F)
M2M Protocols: SNMP, XML, Modbus/TCP, HWg-Push
Mechanical: Metal housing 100 x 213 x 35 [mm] – can be mounted on a wall, on a DIN rail, or as a 1U device into a 19" cabinet
Alarm: SNMP Trap, E-mail,, Relay ouputı, SMS (with modem)
Warranty: 5 Yıl
Support for programmers: HWg SDK
Online Portal
SensDeskHW Group's free online portal for up to 10 sensors |
|
Supported Software
CapTemp / CapTemp Portal : Online monitoring for multi sites, davenced alarming options and reporting
HWg-PD Trigger: Sends a text message or displays a warning whenever a value is out of a specified range or a monitored device fails
HWg-PDMS: Monitoring software, graphs, database of readings, output to MS Excel
Third partySNMP software: HP OpenView, IBM Tivoli, Nagios, Zabbix, Cacti, Monitor one, The Dude, Paessler IPCheck, Ipswitch WhatsUp, Axence nVision, CBR little: eye, LoriotPro, GFi NSM, SNMPc 7, CA NSM, ActiveXperts NM, Intellipool NM, MSC Operations Manager 2007

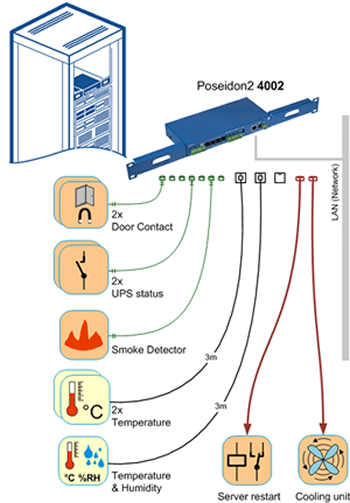

Usage Examples
|
|
Uygulama Örneği
|
Sunucu Odası Uzaktan Denetlenmesi
|
 |
Esas iklimlendirme cihazı hatası durumunda (odanın sıcaklığı yükselince), Poseidon2 4002 yedek iklimlendirme cihazını çalıştırır ve operatörü uyarırSensörler
 |
|
|
1-Wire UNI sensörler
|
Detekörler
|
